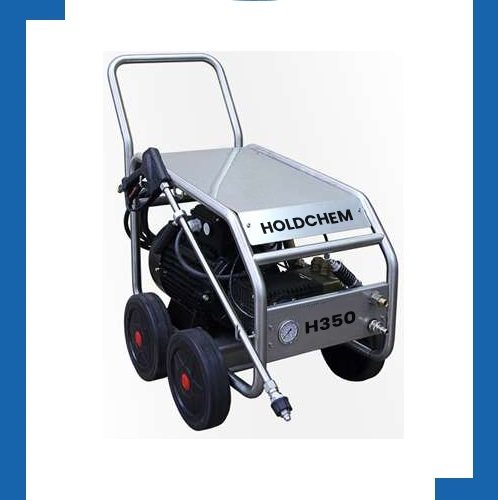

HoldChem - High Pressure Machine H350
High-Pressure Triplex Plunger Pump for Vessel Hold Cleaning Applications
PUMP SPECIFICATIONS
| Sr. No. | Pump Description |
|---|---|
| 1 | Model No.: PXI 11.50 |
| 2 | Flow Rate: 13 LPM |
| 3 | Pressure: 350 BAR |
| 4 | Inlet Size: 1/2” BSPF |
| 5 | Outlet Size: 3/8” BSPF |
| 6 | Engine Power: 20 HP/ Foot Mounted/ 3Phase/440V/60Hz/1750 RPM |
| 7 | Drive Arrangement: Direct Coupled |
| 8 | Suction Condition: Positive feed required |
| 9 | Mounting: Trolley Mounted Frame System |
| 10 | Operating Temperature: Ambient |
MATERIAL OF CONSTRUCTION
| Sr. No. | Material |
|---|---|
| 1 | Main Body: Aluminum Die Cast |
| 2 | Crankshaft: Forged, Hardened & Ground-Alloy Steel |
| 3 | Plunger: Ceramic (<0.20 Ra) |
| 4 | Plunger Seal: Buna-N Seal |
| 5 | Cylinder: Brass Forged |
| 6 | Valve Assembly: Stainless Steel |
SCOPE OF SUPPLY
| Sr. No. | Item Name | Qty |
|---|---|---|
| 1 | High pressure triplex plunger pump - PXI 11.50 (Make - Hawk, Italy) | 1 Nos |
| 2 | Electric motor 20 hp/60 Hz/440 V / 1750 rpm/IE2 (Make - Crompton) | 1 Nos |
| 3 | Tyre Coupling with Coupling Guard | 1 Nos |
| 4 | Star Delta Electric Control Panel for 30 HP | 1 Nos |
| 5 | Four Wheel Trolley Mounted System | 1 Nos |
| 6 | Pressure gauge glycerine filled-dial 2.5" (0-1000 bar) | 1 Nos |
| 7 | 3/8" High Pressure Needle Valve | 1 Nos |
| 8 | Suction Filter For Positive suction | 1 Nos |
| 9 | Unloader Valve (Make- Italy) | 1 Nos |
| 10 | Trigger Operated Gun (Make - Italy) | 1 Nos |
| 11 | 1/4" BSPM Straight Jet Nozzle MEG-03 | 1 Nos |
| 12 | 1/4" BSPM V Jet degree Nozzle MEG-03 | 1 Nos |
| 13 | 1/4" Rigid Tube Lance SCH 80 1 Mtr Long | 1 Nos |
| 14 | Lance Adaptor for Nozzle to Rigid Lance | 1 Nos |
| 15 | 3/4” Hose pipe for Suction | 3 Mtr. |
| 16 | 1/2” Hose Pipe for By pass | 1.5 Mtr. |
| 17 | 3/8” High pressure water blast rubber hose | 10 Mtr |
